In the realm of automotive braking systems, the brake caliper plays a crucial role. This component is responsible for applying pressure from the brake pads against the rotating brake disc, generating friction to decelerate or stop the vehicle.

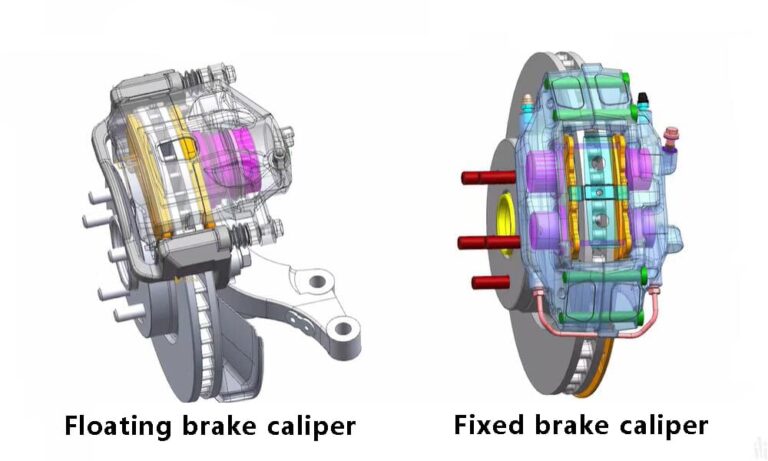

Two primary types of brake calipers dominate the automotive landscape: fixed calipers and floating calipers.
Fixed Calipers:
- Structure: As the name suggests, fixed calipers remain stationary during the braking process. They typically consist of a caliper body and brake pads integrated within. The brake pads engage with the disc through the action of a piston driven by hydraulic pressure. When the brake pedal is depressed, hydraulic fluid forces the piston forward, pushing the brake pads against the disc.
- Working Principle: The principle is straightforward: hydraulic pressure activates the piston, causing the brake pads to engage with the disc, generating friction and slowing down the vehicle's rotation.
-
Advantages: Fixed calipers offer several key advantages, including:
- Superior Stability: Their fixed position ensures consistent and reliable braking force distribution.
- High Precision: Precise manufacturing and design contribute to accurate brake pad positioning and optimal disc contact.
- Precise Repeatability: Consistent brake pad engagement enhances braking accuracy and repeatability.
Floating Calipers:
- Structure: Unlike fixed calipers, floating calipers exhibit a degree of movement. They incorporate a mechanism that allows the caliper to shift slightly, accommodating variations in disc size and shape. The typical structure includes a caliper body, a floating mechanism, and brake pads.
- Working Principle: During braking, the inner piston and brake pad initially contact the disc. As braking force increases, the caliper body moves along guide pins, allowing the outer brake pad to engage with the disc, ensuring even pressure distribution.
-
Advantages:
- Exceptional Adaptability: Floating calipers can accommodate a wider range of disc sizes and shapes, enhancing their versatility.
- Reduced Component Wear: The adjustable clamping force minimizes the risk of damage to both the caliper and the brake disc.
- Improved Efficiency: The flexible design enhances operational efficiency by adapting to various braking scenarios.
